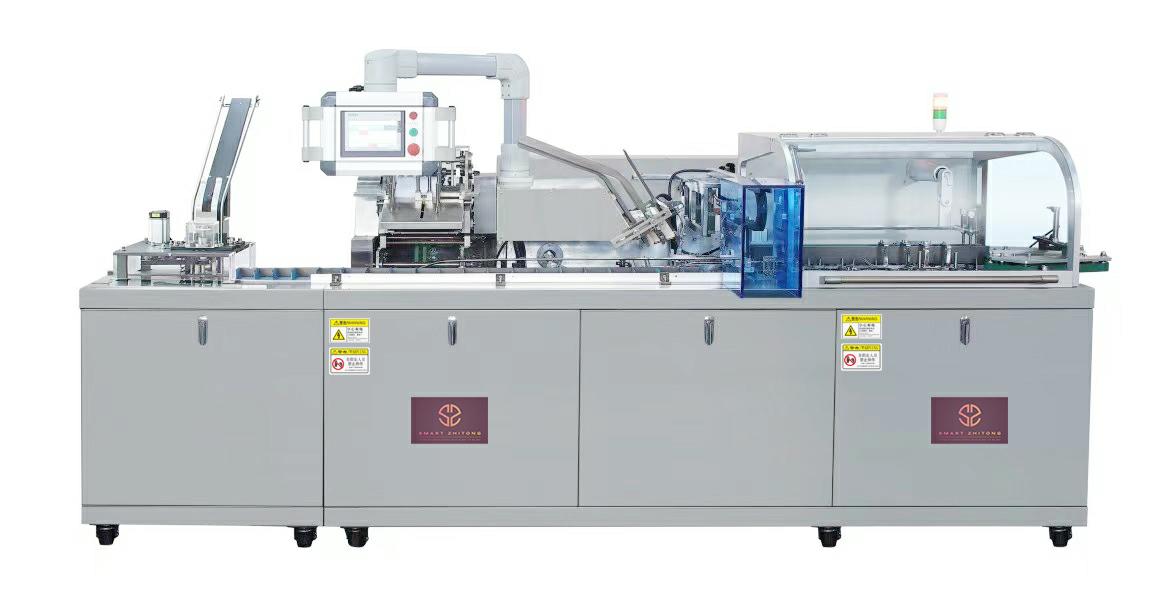

How should High Speed Cartoning Machine be debugged?

How should High Speed Cartoning Machine be debugged


Nowadays, with the continuous development of automation technology, most enterprises will choose automatic packaging machinery for product packaging in order to save costs and improve production efficiency. The automatic cartoning machine is a kind of automatic machinery. The automatic cartoning machine adopts automatic feeding, opening, boxing, sealing, rejecting and other packaging forms. The structure is compact and reasonable, and the operation and adjustment are simple; it is widely used in many fields. Effectively improve the production efficiency of enterprises.
The automatic cartoning machine is a high-tech product integrating light, electricity, gas and machine. It is suitable for automatic boxing of various products. Its working process is the conveying of articles; the cartons are automatically opened and conveyed, and the materials are automatically loaded into the cartons; and the complicated packaging process such as paper tongues at both ends is completed.
High Speed Cartoning Machine debugging tutorial; after the installation of the automatic cartoning machine is completed, firstly debug the machine for production, connect the power supply, turn on the power switch on the control panel, and the emergency stop switch button, and check whether the parameters on the display screen of the cartoning machine are normal.
Adjustment of packaging box size: mainly adjust the carton frame, the adjustment of the box chain, according to the size of the carton, the size of the box frame, the length, width and height of the box chain.
1. Put the carton we want to adjust on the box base, and then adjust each guide of the box base to be close to each side of the box. Make the box stable so that it does not fall.
2. Carton length adjustment: put the sealed carton on the out-box conveyor belt, and then adjust the handwheel on the right so that the carton conveyor belt is in contact with the edge of the carton.
3. Carton width adjustment: first loosen the two sprocket screws on the outside of the main chain. Then put a cardboard box in the middle of the chain, and adjust the width of the chain to be the same as the width of the box. Then tighten the rear sprocket screws.
4. Carton height adjustment: Loosen the two fastening screws at the front and rear of the upper pressing guide rail, and then turn the upper hand wheel to make the upper guide rail contact the upper surface of the carton and the guide rail. Then tighten the fixing screws.
5. Adjustment of the size of the discharge grid: unscrew the fixed bearing screw, put the product in the push plate grid, push the baffle left and right until it is adjusted to a suitable size, and then tighten the screw. Note: There are several screw holes on the panel here, be careful not to twist the wrong screws when adjusting the machine.
After the adjustment of each part is completed, you can start the jog switch on the control panel, and use the jog operation to perform manual adjustments such as box opening, suction box, material feeding, corner folding, and glue spraying. After the debugging of each action is completed, the start button can be opened, and finally the material can be put on for normal production.
